Infiniti Q30 Interior Illumination
Infiniti required sophisticated interior lighting that would enhance the premium cabin experience while meeting stringent automotive quality and assembly requirements. The project demanded multiple lighting applications with consistent performance and efficient manufacturing.
Our Solution
Complete Interior Lighting Package

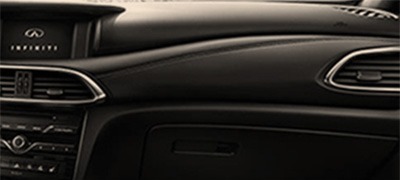

- Dashboard Accent Illumination: 350mm precision lightguide with fine light extraction features for controlled light distribution along grained dashboard contours

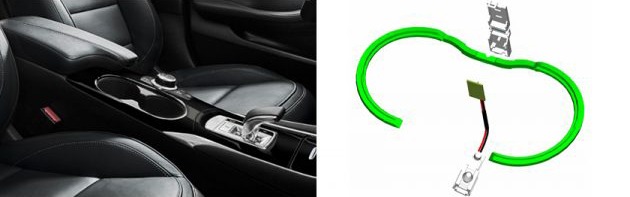

- Cup-holder Illumination: Integrated lightguide assemblies for functional illumination developed with full opto-mechanical design and analysis

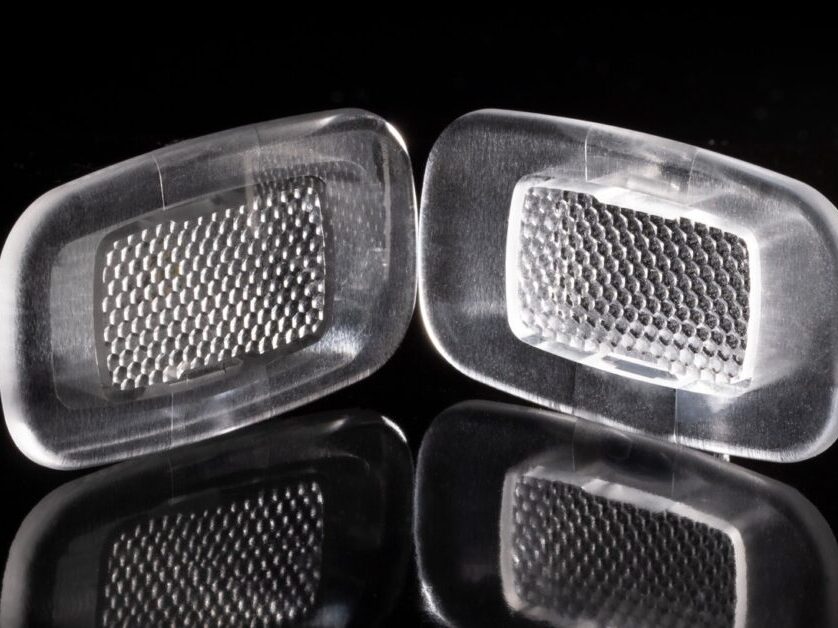

- Interior Lighting Components: Advanced optical components for comprehensive interior illumination
Advanced Design Techniques
- Full opto-mechanical design and analysis for optimal performance
- Design for Assembly (DFA) with Poke Yoke capability for ease of manufacture
- Component reduction and tooling complexity simplification over customer’s original design
- Production-ready prototyping through ongoing mass manufacture support
- Fine light extraction feature patterns for controlled distribution along grained dashboard contours
Ready to illuminate your next project?
Let’s discuss how POAL can support your automotive lighting requirements.
Key Achievements
The project delivered exceptional design excellence through fine light extraction patterns that provided controlled distribution along dashboard contours, perfectly matching the vehicle’s premium aesthetic. Manufacturing efficiency was significantly improved by reducing component count and tooling complexity compared to the customer’s original design, while maintaining the highest quality standards. Complete quality assurance was provided from initial prototyping through ongoing mass production, ensuring consistent performance and reliability. The final solution achieved premium performance with production-level illumination that met Infiniti’s luxury standards and enhanced the overall cabin experience.
Technical Highlights
Full opto-mechanical design validation

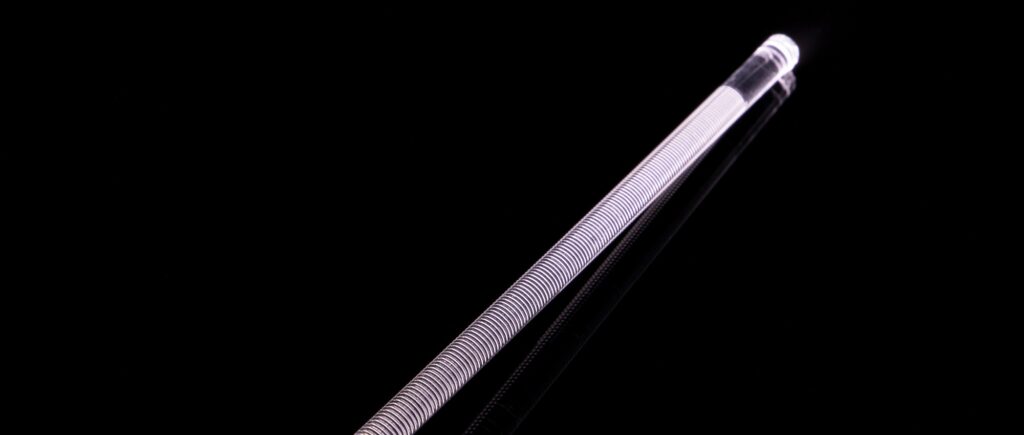

350mm long precision lightguide assembly
Fine light extraction feature patterns for controlled distribution
Grained finish compatibility for dashboard applications
